Mitutoyo 209-604 Dial Caliper Gauge, External Measurement, Metric, White Face, 0-50mm Range, +/-0.05mm Accuracy, 0.05mm Graduation, 2mm Dia. Ball/0.5mm R Chisel Contact Point Features

• Metric measuring dial, for readability
• Ball contact points on arched upper and straight lower arms, for tube-thickness type measurements
• Spring-loaded caliper arms make point contact at constant measuring pressure, for ease of use
• 0.05-mm dial graduation, for precision measurements
• 0.05-mm accuracy rate, for high accuracy readings

Mitutoyo 209-604 Dial Caliper Gauge, External Measurement, Metric, White Face, 0-50mm Range, +/-0.05mm Accuracy, 0.05mm Graduation, 2mm Dia. Ball/0.5mm R Chisel Contact Point Overview

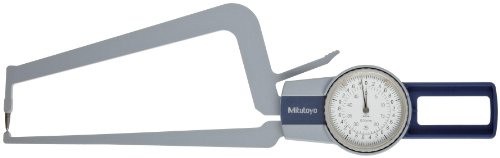

The Mitutoyo 209-604 tube-thickness type external dial caliper gage uses a dial to perform outside (OD) measurements between 0 and 50 mm. With its arched upper arm and straight lower arm, this gage is designed to measure tube thickness. For highest levels of accuracy, this caliper is used with a ring gauge, setting ring, or micrometer.

An external dial caliper gage is one of the simplest forms of calipers. Its arms are designed for taking tube-thickness type measurements. The dial caliper gage is a simplified version of a dual scale dial caliper. The dial is circular and has a pointer; it is mounted on a toothed gear track which drives the pointer. The minimum measurement of the dial creates the accuracy of that result. The dial is marked in inches or millimeters and can be rotated beneath the pointer to measure size differential between two objects. The dial caliper is easier to read than the vernier caliper, thus safeguarding against reading errors. Its precise measurements complement the use of the vernier caliper; the dial provides readability and interpolating measurements which most vernier calipers, due to their need for direct observation of both scales, may not provide. The dial caliper gage is used along with a setting ring or micrometer to ensure highest levels of accuracy. This caliper gage utilizes a simple metric measuring dial for readability in tube-thickness type OD measurements.

The 209-604 dial caliper gage measures in millimeters, is graduated in 0.05 mm increments, and weighs 310 g. It has ball contact point measuring tips for external tube-thickness type measurements, a maximum probing depth (throat depth) of 170 mm, an upper arm maximum groove depth of 20.0 mm, an upper arm minimum groove width of 7 mm, and a lower arm width of 12 mm. Range is 0 - 50 mm, resolution is 0.05 mm, a measuring force of 1.8N or less, and accuracy is rated at + or - 0.05 mm, which meets Federal Accuracy Specifications GGG-C-111B.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, machining, manufacturing, carpentry, and medicine. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers all give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The dial caliper is used for measuring size differential between two objects, as well. The digital caliper takes the same sort of differential measurements as the dial caliper by zeroing the display at any point along the slide, with an LCD (replacing the dial) that displays a single, easily read value in both English and metric units. Some digital calipers can hold data readings between measurements and send them to data collection devices.

Founded in Tokyo in 1934, Mitutoyo is a leader in the metrology field, producing high-quality measurement products, including mechanical, dimensional gauging products, focusing on micrometers, calipers, indicators, and other measurement tools, as well as output gauges, interfaces, data collectors, and analysis software. Mitutoyo formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, Illinois, with additional locations in the U.S. and Canada.

The Mitutoyo 209-604 is supplied with a fitted carrying case.

• Metric measuring dial, for readability
• Ball contact points on arched upper and straight lower arms, for tube-thickness type measurements
• Spring-loaded caliper arms make point contact at constant measuring pressure, for ease of use
• 0.05-mm dial graduation, for precision measurements
• 0.05-mm accuracy rate, for high accuracy readings
